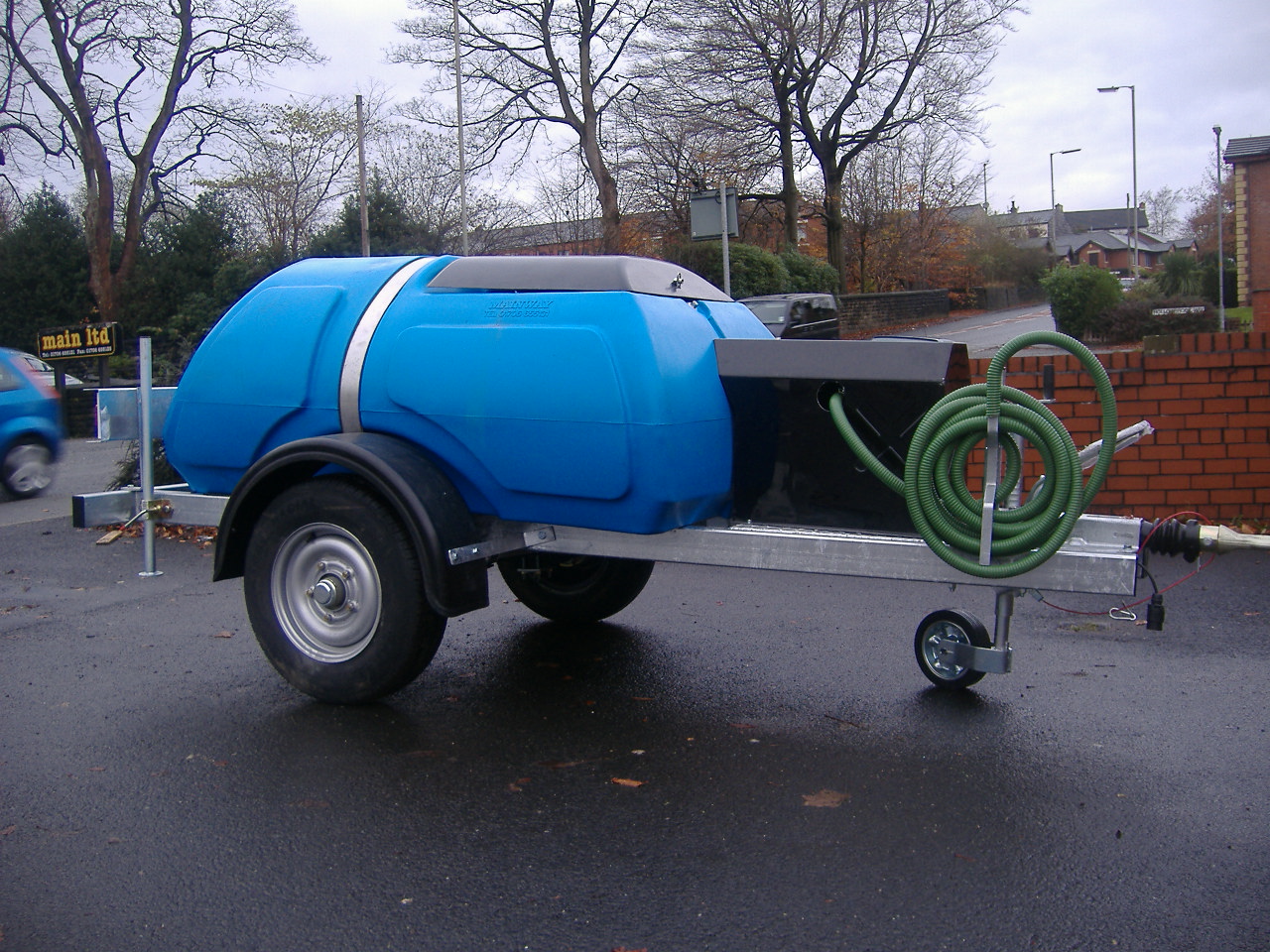

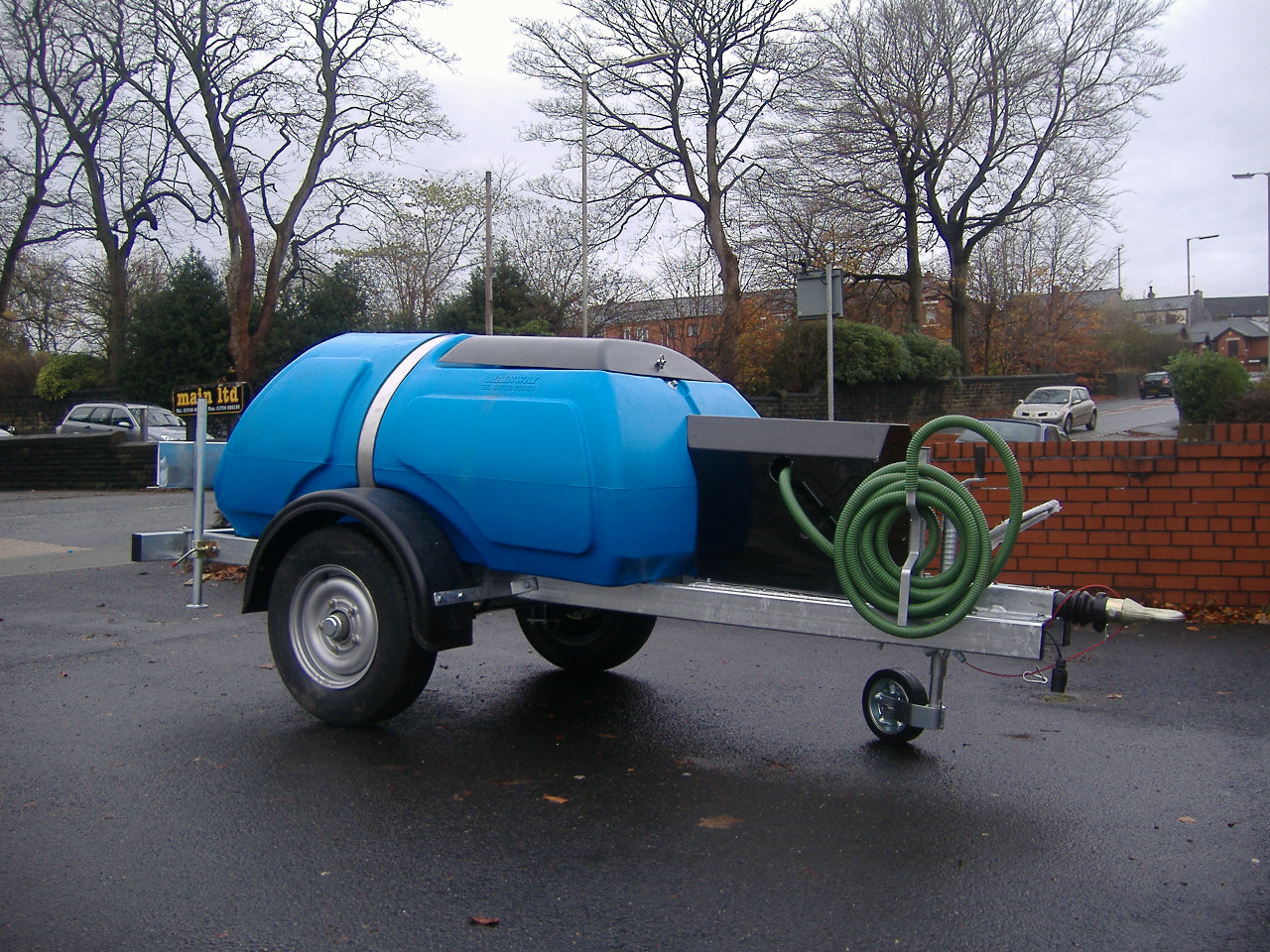

Pressurised Water System

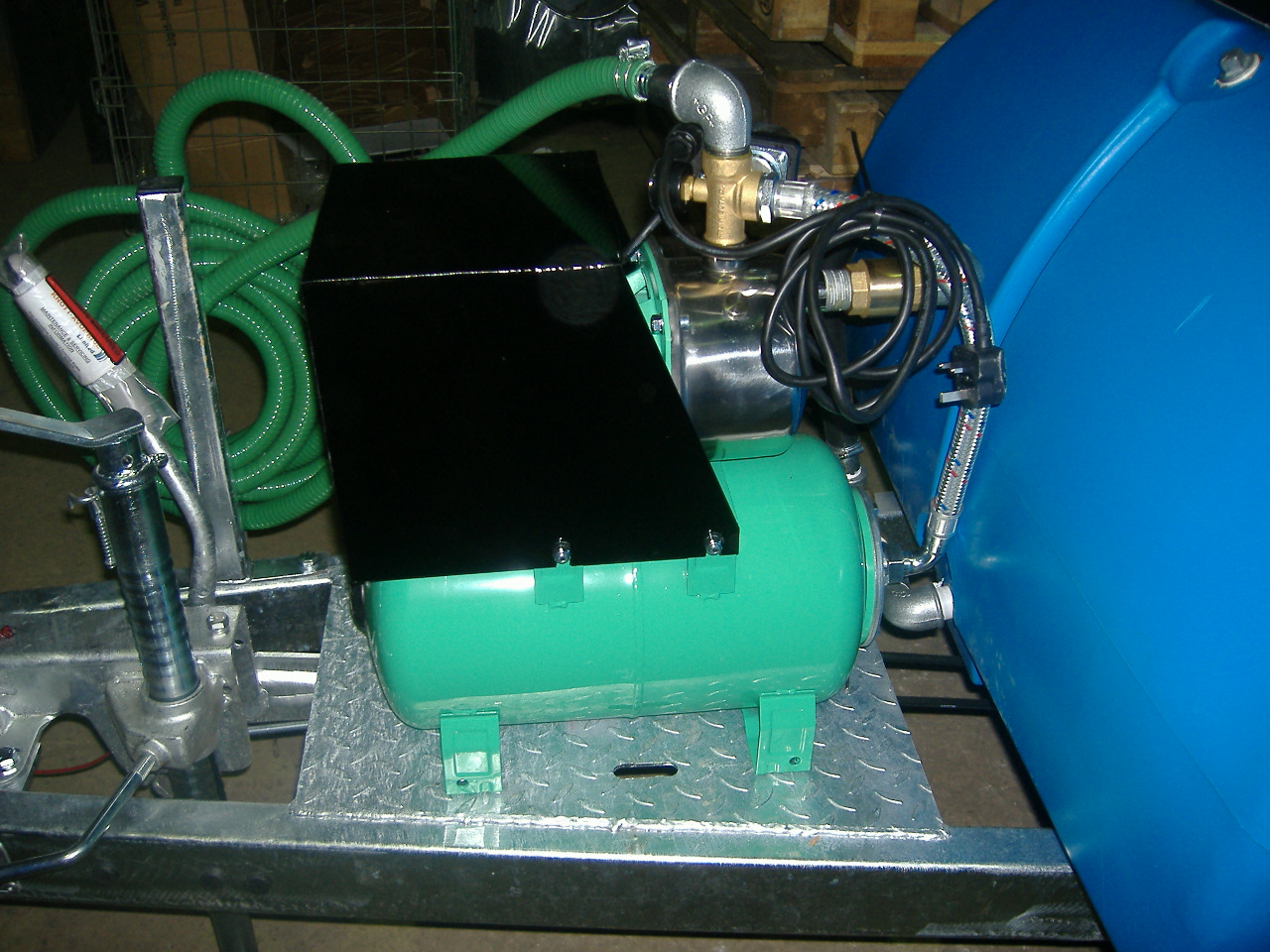

Our Pressurised Water System is a durable impact resistant polythene tank and comes complete with a 240V or 110V water pump incorporating a pressure sensor unit, delivering 55 litres per minute with a maximum head of 50M. The sensor unit allows the pump to work only when water is required, for example when turning on a tap or flushing a toilet. The sensor also prevents the pump working when the bowser runs dry.
The tank has a lockable tamper proof lid, covering the 400mm diameter access hatch which incorporates the filler point and vent.
The plastic tank is mounted on a galvanised chassis unit, manufactured from Rolled Hollow Section, fitted with a single leaf-spring suspension axle. The unit is manufactured to full highway specification, with overrun and lockable parking brakes and two 185 x 14 x 8 Ply wheels and tyres will be fitted underneath plastic mudguards.
The hydraulically damped towing unit will be supplied with an eye or ball hitch (to suit your towing vehicle) with telescopic jockey wheel, and a prop stand will be fitted to the rear of the unit. Our standard lighting board will be fitted, wired through the chassis and connected with an international
7 pin plug.
The bowser can also be supplied as a site model. This is designed primarily for off-road use and will be fitted with an unbraked axle. No suspension mudguard brakes or lights will be supplied.
Ideally suited to
- Building Contractors
- Plant Hire Companies
- Council & Local Authorities
- Civil Engineers
- Show Ground Operators

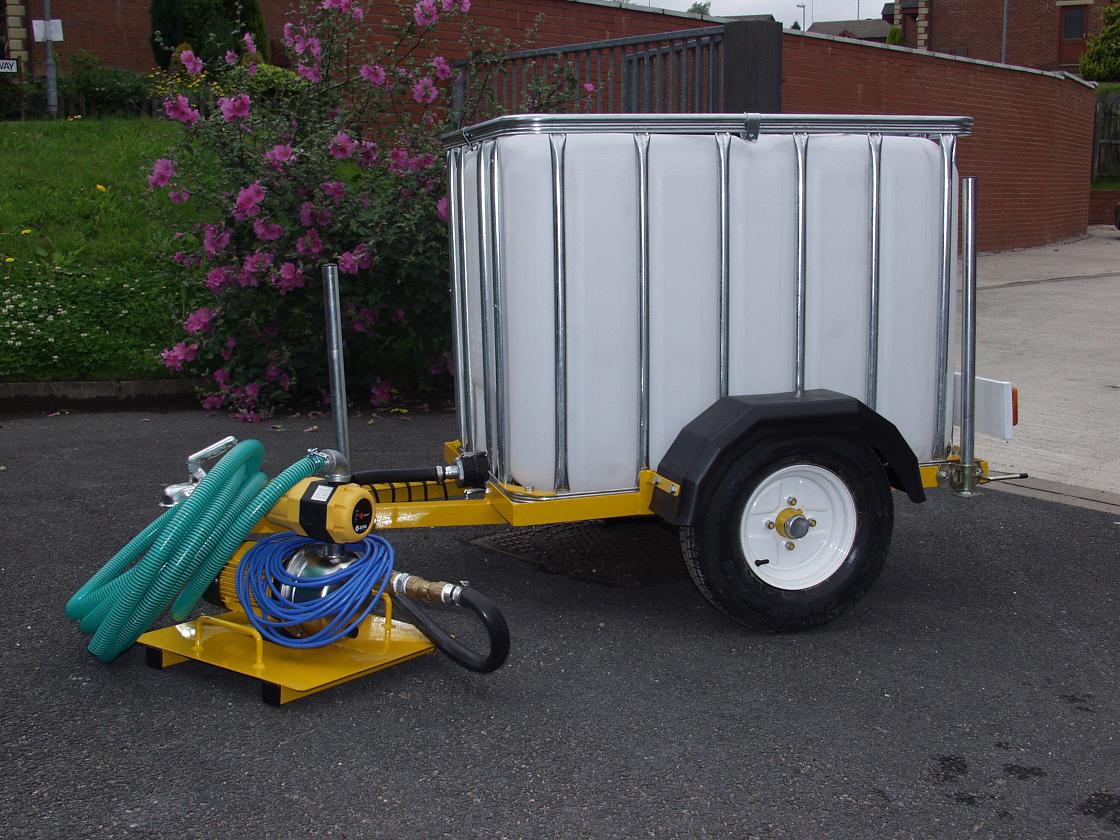

- Asbestos Engineers
PDF Datasheet Download
Download Pressurised Water System Datasheet
The Datasheet is supplied in PDF format. To view these documents you need Adobe Acrobat Reader, which you can download free of charge by clicking on the link below:
